首页 > Brocade EN4023 10Gb Scalable Switch for Flex System
特性
•Brocade EN4023 10Gb Scalable Switch for Flex System作为10GbE高性能的Flex System交换机模块提供多种多样的以太网协议连接的同时使用户降低IT成本，按需购买升级服务
•提升网络实用性
•加强灵活性和高可拓展性
•可以极大的简化用户网络架构
规格
| 技术规格 | 94Y5212(Base); 94Y5158(FoD 1); 94Y5159(FoD 2); 47C9993(FoD 3) |
| 内部端口 | 42 * 内部全双工 10GbE端口 2 * 内部全双工 1GbE端口 （连接至CMM） |
| 外部端口 | 14 * 1 Gb 或 10 Gb SFP/SFP+ 端口 （SFP+ 模块和DAC线缆不包含在该设备中，需要单独购买） 2 * 40 GbE QSFP+ （QSFP+ 模块和DAC线缆不包含在该设备中，需要单独购买） 1 * RS-232 串口 (mini-USB 连接端口) |
| L2层转发特点 | Address Resolution Protocol （ARP） RFC 826 IGMP v1/v2 Snooping MAC Learning and Aging Link Aggregation Control Protocol (LACP) IEEE 802.3ad/802.1AX Virtual Local Area Networks (VLANs) VLAN Encapsulation 802.1Q Private VLANs Edge loop detection (ELD) Per-VLAN Spanning Tree (PVST+/PVRST+) Rapid Spanning Tree Protocol (RSTP) 802.1w Multiple Spanning Tree Protocol (MSTP) 802.1s STP PortFast, BPDU Guard, BPDU Filter STP Root Guard Layer 2 Access Control Lists (ACLs) Pause Frames 802.3x Uni-Directional Link Detection (UDLD) |
| L3层转发特点 | Border Gateway Protocol (BGP） DHCP Helper Layer 3 ACLs Multicast: PIM-SIM OSPF Static Routes VRF Lite VRF-aware OSPF, VRRP, static routes VRRP-E IPv4/IPv6 dual stack IPv6 ACL packet filtering IPv6 routing |
| Brocade VCS 链路技术特点 | Automatic Fabric Formation DHCP Option 66/67 (Auto Fabric Provisioning) Distributed Configuration Management Distributed Fabric Services Equal Cost Multi-Path (ECMP) Switch Beaconing Transparent Interconnection of Lots of Links (TRILL) Transparent LAN Services Virtual Link Aggregation Group (vLAG) spanning VRRP-E |
| FC/FCoE 特点 （需要FoD-3 - FCoE 许可） | 多跳FCoE; 需要VCS链路技术 FC-BB5 遵从FCF Native FCoE 转发 FCoE to Fibre Channel Bridging Flex Ports, allowing direct and SAN connectivity of Fibre Channel targets End-to-end FCoE (initiator to target) FCoE Initialization Protocol (FIP) v1 support for FCoE device login and initialization Name Server-based zoning Supports connectivity to FIP Snooping Bridge (FSB) device FCoE traffic over standard LAG Interface Binding |
| 多租户和虚拟化特点 | TRILL FGL-based VCS Virtual Fabric feature Brocade VCS Gateway for NSX with VMware NSX Orchestration Automatic Migration of Port Profiles (AMPP) VM-Aware Network Automation |
| IP 存储 | Auto QoS (automatic prioritization of IP storage traffic) |
| QoS | ACL-based QoS Eight priority levels for QoS Class of Service (CoS) IEEE 802.1p DSCP Trust DSCP to Traffic Class Mutation DSCP to CoS Mutation DSCP to DSCP Mutation Random Early Discard Per-port QoS configuration ACL-based Rate Limit Dual-rate three color token bucket ACL-based remarking of CoS/DSCP/Precedence ACL-bases sFlow Scheduling Strict Priority (SP), Deficit Weighted Round-Robin (DWRR), Hybrid Scheduling (Hybrid) Queue-based Shaping |
| 监控 | IPv4/IPv6 management Industry standard Command Line Interface Netconf API REST API with YANG data model Brocade VCS Plugin for OpenStack Link Layer Discovery Protocol (LLDP) IEEE 802.1AB Logical chassis management MIB II RFC 1213 MIB Switch Beaconing Switch Port Analyzer (SPAN) SNMPv3 (default) and SNMPv1 sFlow RFC 3176 Out-of-band management Remote SPAN (RSPAN) RMON-1, RMON-2 NTP Management Access Control Lists (ACLs) Role-Based Access Control (RBAC) Range CLI support UDLD OpenStack Neutron ML2 plugin |
| 安全 | Port-based Network Access Control 802.1X RADIUS TACACS+ Secure Shell (SSHv2) BPDU Drop Lightweight Directory Access Protocol (LDAP) Secure Copy Protocol (SCP) Secure FTP (sFTP) |
| 交换机健康监控 | Brocade Fabric Watch monitoring and notification Command-line interface (CLI) through Telnet or Secure Shell V2 (SSHv2) Terminal emulation program connection to the serial port interface Brocade Network Advisor Simple Network Management Protocol (SNMP) agent |

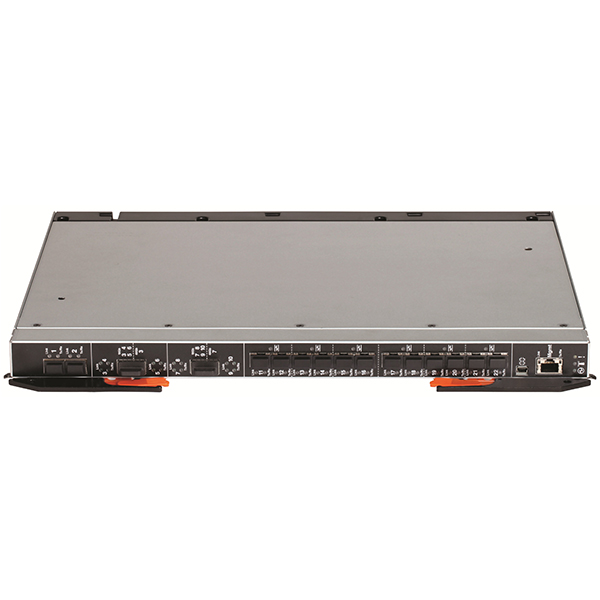

相关图片
特别说明：
以上产品信息仅供参考，产品实际规格配置及随附保修和服务，请在购买时向经理咨询，并以产品实际状况为准。
标称存储容量表明产品规格，用户实际可用容量小于标称值，且将因系统设置情况而不同。
以上内容如有变动，恕不另行通知。
